Flash Hobby Servos: Choosing the Ultimate Steering and Throttle Setup

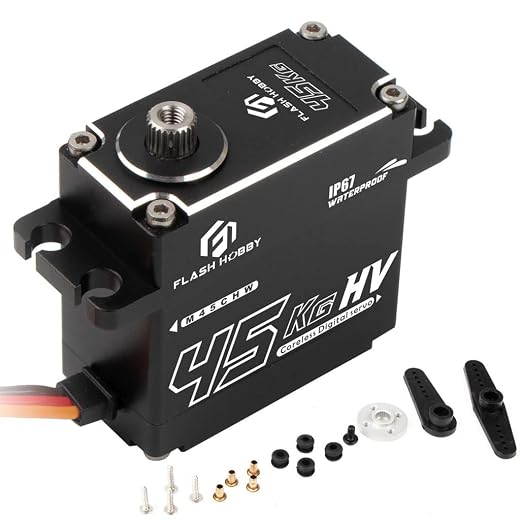

The FLASH HOBBY 45Kg Full Waterproof Coreless, designated under model number M45CHW, provides an impressive blend of rapid transit speed and formidable turning authority. Engineered around an efficient coreless motor, this actuator eliminates the heavy iron core found in traditional armatures, resulting in quicker acceleration, reduced operational noise, and immediate throttle or steering response. It features an operating range across standard high-voltage receivers, delivering 35.00kg-cm of torque at a speed of 0.12 seconds per 60 degrees under 6.0 volts, and jumping up to 45.00kg-cm at 0.11 seconds per 60 degrees when fed 8.4 volts.

Durability remains a core design priority for this unit. It is encased in a full aluminum housing paired with stainless steel gears and a dual ball bearing layout that supports heavy radial loads without introducing unwanted slop. Much like bringing along a handy fuji film disposable camera to snap photos of treacherous rock climbs, running a weather-sealed steering actuator allows you to focus purely on driving without babying your electronics. With an IP67 waterproof certification, the FLASH HOBBY M45CHW resists dust, mud, and complete water immersion, functioning reliably in damp environments and torrential weather. The standard footprint measures 40.4 by 20.4 by 36.70 millimeters, weighing in at 75 grams without the horn, and connects via a generous 300-millimeter JR-style wire.

However, drivers seeking direct 3S or 4S LiPo battery power without drawing through an external battery eliminator circuit will want to step up to one of the brand higher-voltage brushless alternatives.

Stepping into extreme power applications, the FLASH HOBBY 50kg 14V Waterproof IP67, designated as the M50BHW, is purpose-built to leverage direct high-voltage power systems. By taking advantage of a modern brushless motor architecture, this unit provides maximum thermal efficiency, low mechanical wear, and relentless power output. The listing specifies that at 10 volts it outputs a standing torque of 37kg-cm at 0.12 seconds per 60 degrees, while scaling up to a massive 50kg-cm of torque with a lightning-fast transit time of 0.09 seconds per 60 degrees when operated at its full 14-volt rating.

The actuator features an all-aluminum case designed to draw heat away from the brushless stator during extended, high-draw runs. When taking a break from tuning chassis links to enjoy a classic game gear game, you gain an appreciation for electronics that stay reliably dialed without drifting off trim. The FLASH HOBBY M50BHW carries an IP67 waterproof rating to maintain internal water tightness when crossing creeks or racing over wet ground. Measuring 40 by 20 by 40.5 millimeters with a weight of 83 grams, it features a 300-millimeter lead terminated with JR and JST connection options for versatile power delivery.

While it offers immense speed and torque, operators whose speed controllers only output 6.0 volts will find it underdriven, making standard-voltage models a more practical pairing for mild electrical systems.

Sitting at the pinnacle of strength in this lineup, the FLASH HOBBY 60KG Brushless Servo IP67, identified as the M60BHW, delivers monstrous torque tailored for massive scale rigs and robotic arms. This brushless powerhouse utilizes a sophisticated MOS drive system alongside an advanced magnetic encoder potentiometer to guarantee extreme linearity, precise centering, and zero signal drift over long operating cycles. It is specified for a broad operating voltage range spanning 8.4 volts up to 14 volts, producing 48kg-cm of torque at 0.14 seconds per 135 degrees on 8.4 volts, and escalating to an astonishing 60kg-cm at 0.11 seconds per 135 degrees under 14 volts.

External protection and mechanical strength are top tier on this model. Flash Hobby manufactures the shell from full CNC-machined AL 6082 aluminum to maximize structural rigidity and passive heat dissipation. An internal black O-ring seal delivers true IP67 waterproofing, allowing your vehicle to cross streams, tackle muddy bogs, and run in pouring rain without electrical shorting. Internally, full metal gearing rides on dual ball bearings to withstand violent shock loads, and the package includes a heavy-duty 25T servo horn. Measuring 1.57 by 0.79 by 1.8 inches and weighing 5 ounces, it offers an extended 270-degree limit angle with an operational travel range of 135 degrees in each direction.

However, its 5-ounce mass adds noticeable front-end weight, which may be excessive for smaller or lightweight vehicles that prioritize nimble agility over raw crushing torque.

The FLASH HOBBY 35KG RC Digital Servo, representing the 35DHW-V2 series, offers a well-balanced steering solution designed for standard scale recreation. Built with a responsive DC motor and MOS drive control circuitry, this digital servo delivers dependable steering strength without requiring exotic voltage inputs. Operating across a standard 6.0-volt to 8.4-volt range, it yields 28kg-cm at 0.20 seconds per 60 degrees under 6.0 volts, 31kg-cm at 0.14 seconds per 60 degrees at 7.4 volts, and peaks at 35kg-cm with a swift 0.11 seconds per 60 degrees when supplied with 8.4 volts.

Just as outdoor hobbyists capture off-road adventures using a simple kodak reusable film camera, keeping an RC rig running through rain and dirt requires durable equipment built to resist the elements. The 35DHW-V2 features an IP67 waterproof enclosure to shield the internal mechanics when driving through running water and wet grass. Its construction pairs hardened stainless steel internal gears with a rigid CNC aluminum housing that dampens operating noise and facilitates rapid heat transfer. The servo weighs 2.7 ounces (78 grams), measures 40 by 20 by 40.5 millimeters, and provides a standard 180-degree control travel angle.

While exceptionally solid for general trail driving, drivers piloting heavily weighted rigs with brass axle weights and sticky competition tires will likely prefer the additional torque headroom of the 45kg or 50kg variants.

Tailored specifically for compact RC platforms, the FLASH HOBBY CLS1227RP 8.4V 11KG Coreless brings high-grade componentry to small-scale vehicles. Micro crawlers often suffer from weak steering components and loose geartrains, but this unit addresses those shortcomings by utilizing a high-efficiency coreless motor combined with a programmable PWM digital amplifier driven by a 32-bit MCU. Despite its diminutive footprint of just 23 by 12.6 by 27.0 millimeters and a featherweight design of 22 grams (excluding the horn), it exerts an incredible 11kg of torque at 8.4 volts.

Build quality matches that of its full-sized siblings, boasting a complete aluminum casing, stainless steel gearing, and dual ball bearings that eliminate axle bind and minimize mechanical play. The electronics are highly adaptable, featuring signal mode compatibility with high-end radio systems including Sanwa SSR, NB4, and Futaba modes for ultra-fast signal processing and low latency. The listing notes that the package includes an accessory kit and a matching 25T servo arm to streamline mechanical installation directly out of the box.

This specialized micro unit is engineered for 1/18 and 1/24 scale trail trucks, matching vehicles like the SCX24, TRX4M, and SCX10.3 chassis sub-assemblies such as dig or shift linkages.
